Ultra-X — the spark plug innovation that unites current OEM technologies
X-tremely powerful. X-tremely dependable. X-tremely reliable:

For x-treme demands:

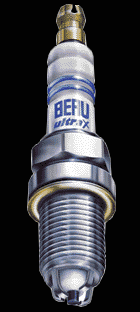

Beru Ultra-X — the air-surface discharge spark plug with nickel sheathed copper core and 4 ground electrodes arranged in pairs.



Beru Ultra-X — the high performance spark plug.

Technical Features

Reliable ignition:
Double ignition reliability due to air-surface discharge technology Sparking improved by four earth electrodes arranged in pairs in an X-shape.
Powerfull:
Optimal combustion due to protruding spark position
Reliable cold starting:
Self-cleaning function due to variable sparking paths
Reliable:
Ideal operating temperature reached quickly due to conical insulator nose
Environmentally friendly:
Pollutant emissions minimised and catalytic converter protected due to effective combustion
Dependable:
Due to resistance to electrode erosion and interference suppression resistor

Good reasons to decide for the new Ultra-X the next time you replace spark plugs!



The ground electrodes arranged in the form of an X on the Beru Ultra X.

 The air-surface discharge spark plug with nickel sheathed copper core and 4 ground electrodes arranged in pairs in the form of an X provide maximum ignition reliability in all operating situations.


Schematic diagram of the 6 possible ways to ignite the air-fuel mixture.

The multifunction principle for optimal ignition reliability: various principles of operation are available for the formation of the sparking path — air discharge, surface discharge and combined air-surface discharge. At the same time, the 4 ground electrodes are offset in height in pairs. On the left the path to one of the two lower electrodes can be seen, (surface discharge), on the right the two possibilities on one of the upper electrodes (air discharge and air-surface discharge). In this way there are six different paths for the ignition sparks.




Our Tip

Timely Spark Plug Replacement Pays for Itself! Spark plugs are subject to wear and must be regularly replaced.

Otherwise there is a risk of incomplete combustion, increased fuel output and increased pollutant emissions as well as misfiring. Misfiring can result in unburned fuel reaching the catalytic converter. This can cause irreparable damage to the catalytic converter!


Types of Spark Plugs:
Ultra X Spark Plug
Ultra Spark Plug
Platinum Spark Plug
Heavy Duty Spark Plug
Isolator Spark Plug
